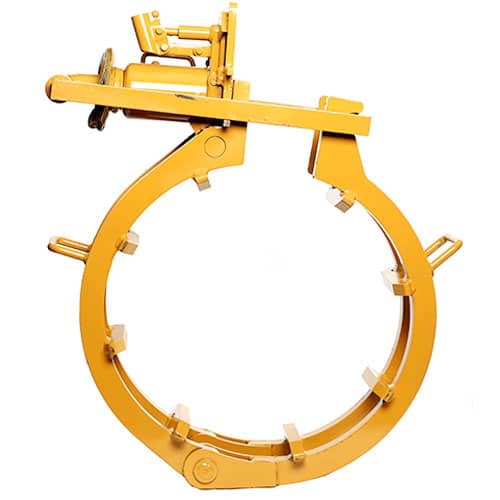

Hydraulic Cage Clamp

When you’re searching for a pipe clamp with a bit more power, the Sawyer Hydraulic Clamp is the answer. Available for pipe sizes 16″ to 60″, this pipeline-proven hydraulic cage clamp meets a wide variety of pipe-to-pipe fit up requirements and might just be the last pipeline welding clamp you will ever need.

The hydraulic mechanism featured with this external line up clamp is especially useful when aligning large pipe since the alignment clamp pulls down tight with minimal effort, and once welding is complete, the hydraulic cage clamp mechanism enables rapid release of the pipeline welding clamp. Also, the no-tack design of this alignment clamp features arched cross bars for 360-degree welding access without removing the clamp. If it’s possible to operate any pipe clamp with both hands tied behind your back, this hydraulic line up clamp is probably the closest thing to it.

Quality steel construction goes into each and every Sawyer Hydraulic Cage Clamp, allowing rugged use and abuse in the field for job after job, and yet, accuracy with every alignment is never in question due to its expert craftsmanship.

Simple, quick and easy to use. That’s the Sawyer advantage, and it’s exemplified with this hydraulic line up clamp.

Key Features:

• For pipe sizes 16″ – 60″
• Crossbars options are flat (tack) or arched (no tack)
• No tack design allows full 360 degree welding
• Each clamp fits a specific pipe diameter
• Clamp closes with minimal effort
• Hydraulic jack pulls down tight with rapid release
• Can be used with Sawyer Spacing Tools, Jack Screw Wedges, and Hi-Lo Wedges
• Manufactured in the USA


Product Video

CLICK HERE to view video

Product Data Sheet

CLICK HERE to view / download product data sheet

Product Use Manual

CLICK HERE to view / download product user manual
